249617
C$26 380.00
Standard Delivery
Shipping: 14–23 days
In stock
249617
Description
Brand: Graco

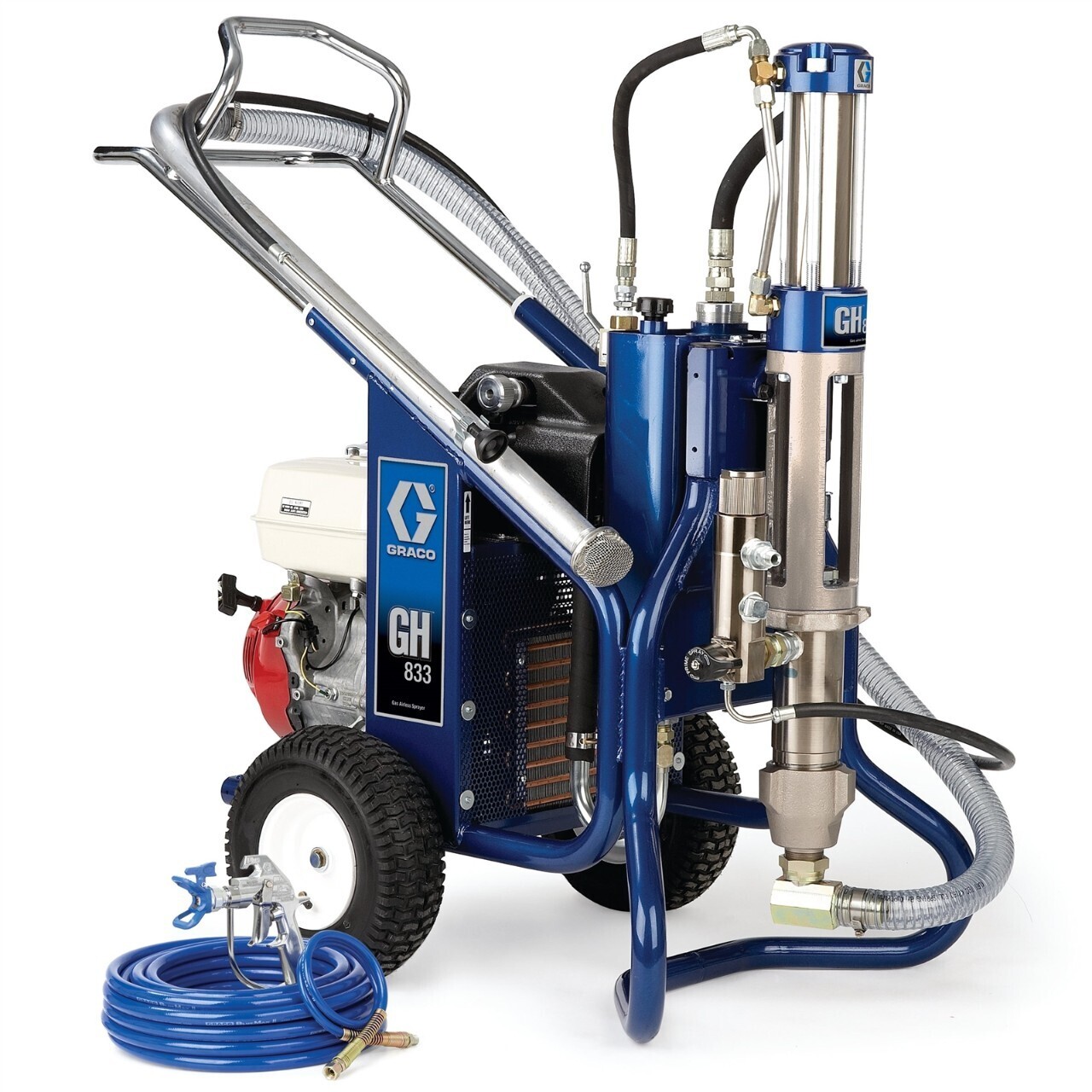

GH SPRAYER,833,COMPLETE
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 733 can get the job done.
- Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Heavy-Duty Graco Hydraulic System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Heavy-Duty Cooling System
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Rugged, Heavy-Duty Steel Frame
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Xtreme Pump
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuickAccess intake valve removes easily for fast repairs
- Ready-To-Spray Big 250 System
- Configured with 250 feet of pressure-rated hose, gun, tip extensions, and all the fittings you will need
- Additional Features
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
Technical Specifications
CONVERT TO METRIC| Compatible Material | Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing |
|---|---|
| Compatible Replacement Pump | 287834 |
| Control Type | N/A |
| Engine Brand | Honda |
| Engine Size (HP) | 13 |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Frame Configuration | Cart |
| Includes | Silver Plus Gun, RAC X 517 Spray Tip, RAC X 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose |
| Material Application | Paints, Primers |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Maximum Tip Size (in) | 0.065 |
| Maximum Tip Size 2 Guns (in) | 0.046 |
| Maximum Tip Size 3 Guns (in) | 0.037 |
| Maximum Tip Size 4 Guns (in) | 0.032 |
| Maximum Tip Size 5 Guns (in) | 0.029 |
| Maximum Tip Size 6 Guns (in) | 0.026 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Model | GH |
| Motor Type | Hydraulic Motor |
| Number of Guns | 6 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (HP) | 13 |
| Power Rating (W) | 9694 |
| Power Rating (kW) | 9.7 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Product Type | Single Leg |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Series | 833 |
| Type | Airless Sprayer |
| Weight (lb) | 360 |
Repair Parts
| PART NO. | DESCRIPTION |
|---|---|
| 246240 | Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTip |
| 277251 | BlueMax II HP Airless Hose, 3/8 in x 50 ft, 4000 psi |
| 245103 | Q KIT REPAIR, DRAIN VALVE |
| 24Y566 | KIT, REPAIR, HYDRAULIC MOTOR |
| 287870 | KIT, REPAIR, PACKING, HYDR. |
| 237840 | Inlet Strainer, SST Cap, 1 1/4 in |
| 287916 | GB KIT, SUCT. HOSE-NON SLVT RES |
| 117285 | PACKING, O-RING |
| 15C766 | TUBE, DIFFUSION |
| 244068 | Easy Out Pump Manifold Filter, Long, 100 mesh |
| 244069 | Easy Out Pump Manifold Filter, Long, 200 mesh |
| 244071 | Easy Out Pump Manifold Filter, Long, 30 mesh |
| 244067 | Easy Out Pump Manifold Filter, Long, 60 mesh |
