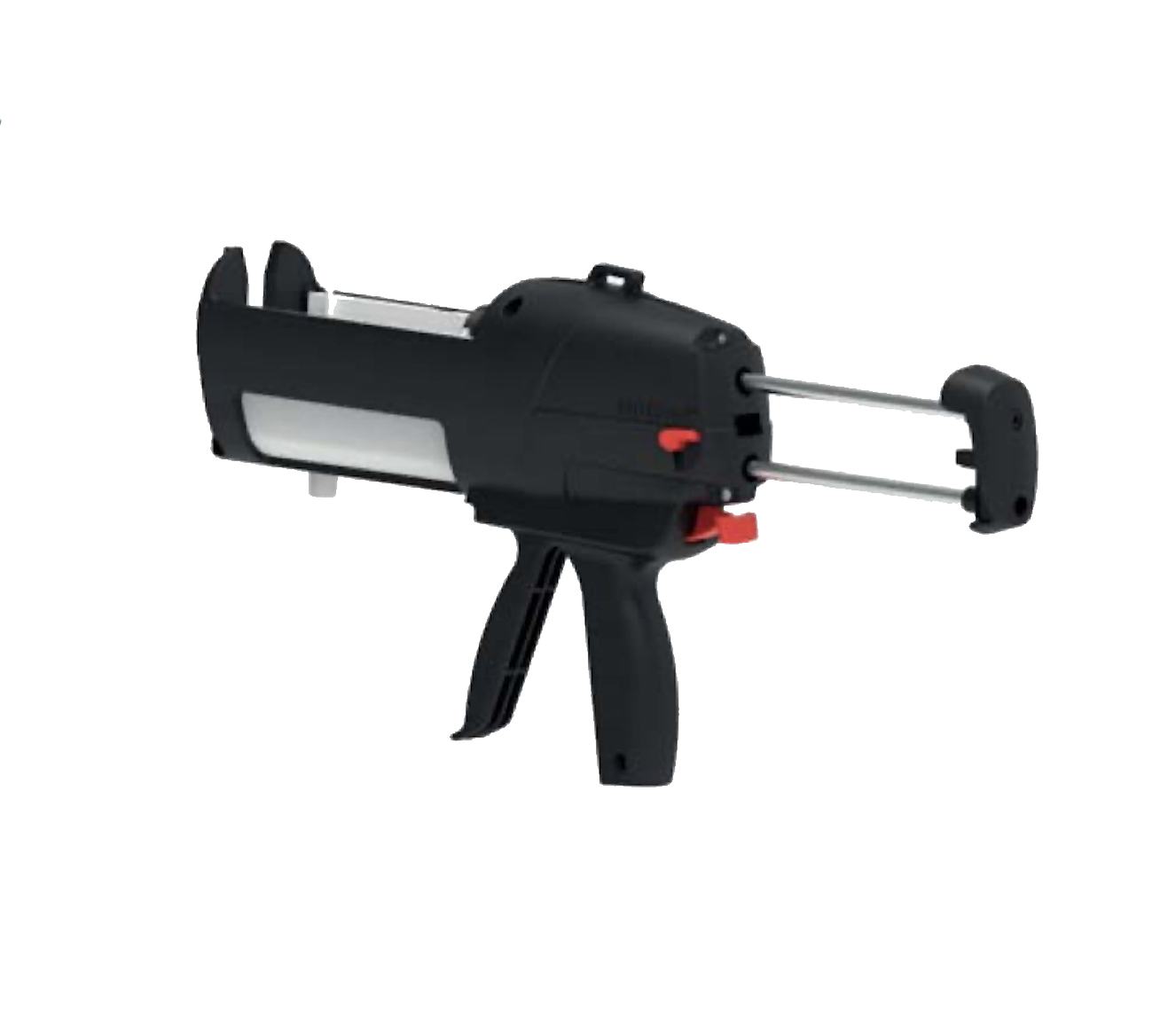

DM2X 200

200ml Two Component Cartridge Dispenser, manual high force ratchet.

FEATURES

• Dual Drive Mechanism
• Ratio Selector Switch
• Brake Release
• Interchangeable Cartridge Trays and Plungers

SPECIFICATIONS

• Cartridge Capacity: 200mL/6.8oz
• Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
• Mechanical Advantage Ratio: 22:1
• Weight: 1.6kg/3.53lbs
• Frame Length: 154.7mm/6.1"
• Maximum Force: 5kN/1169lbf
• Handle Material: Cast Aluminum
• Frame Material: Cast Aluminum
• Viscosity: High
• Mixpac Full Catalogue

Compatible with:

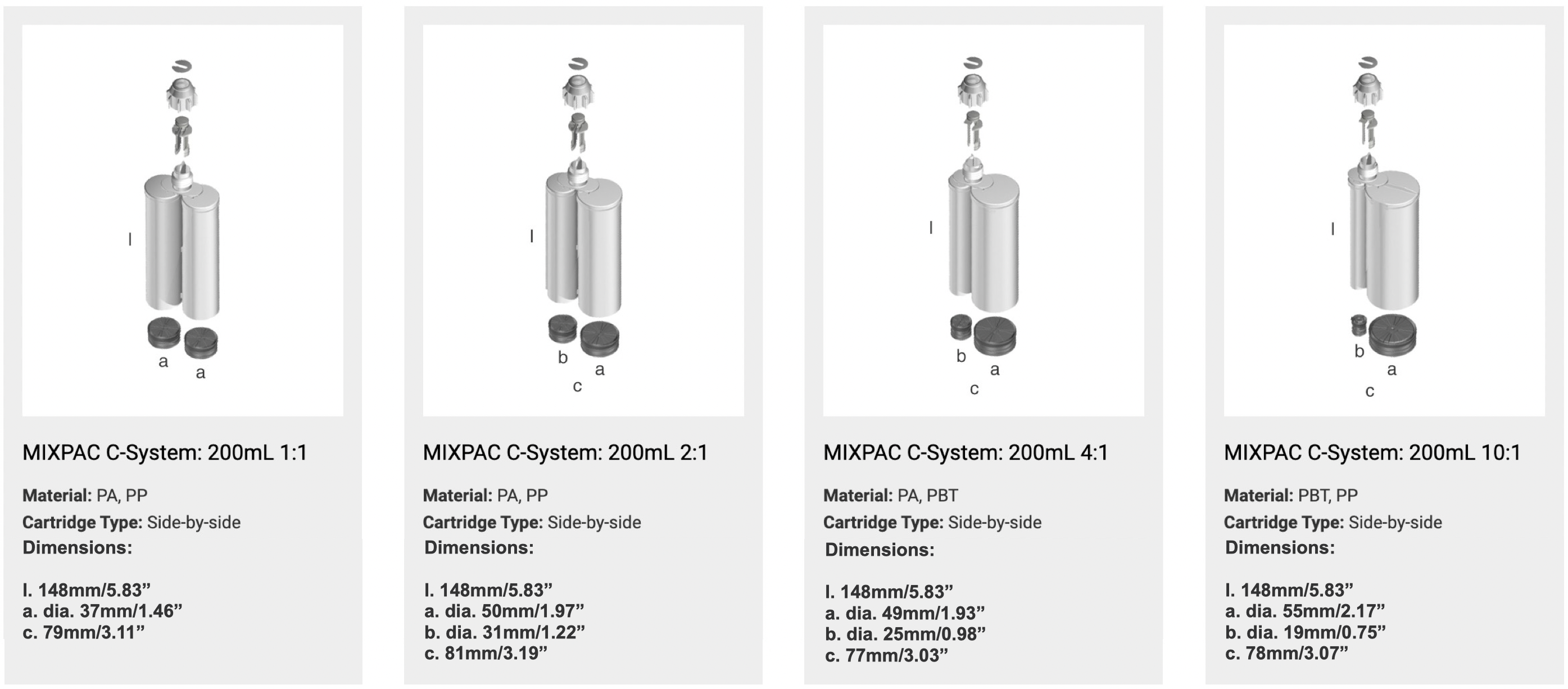

Mixpac System C 200ml

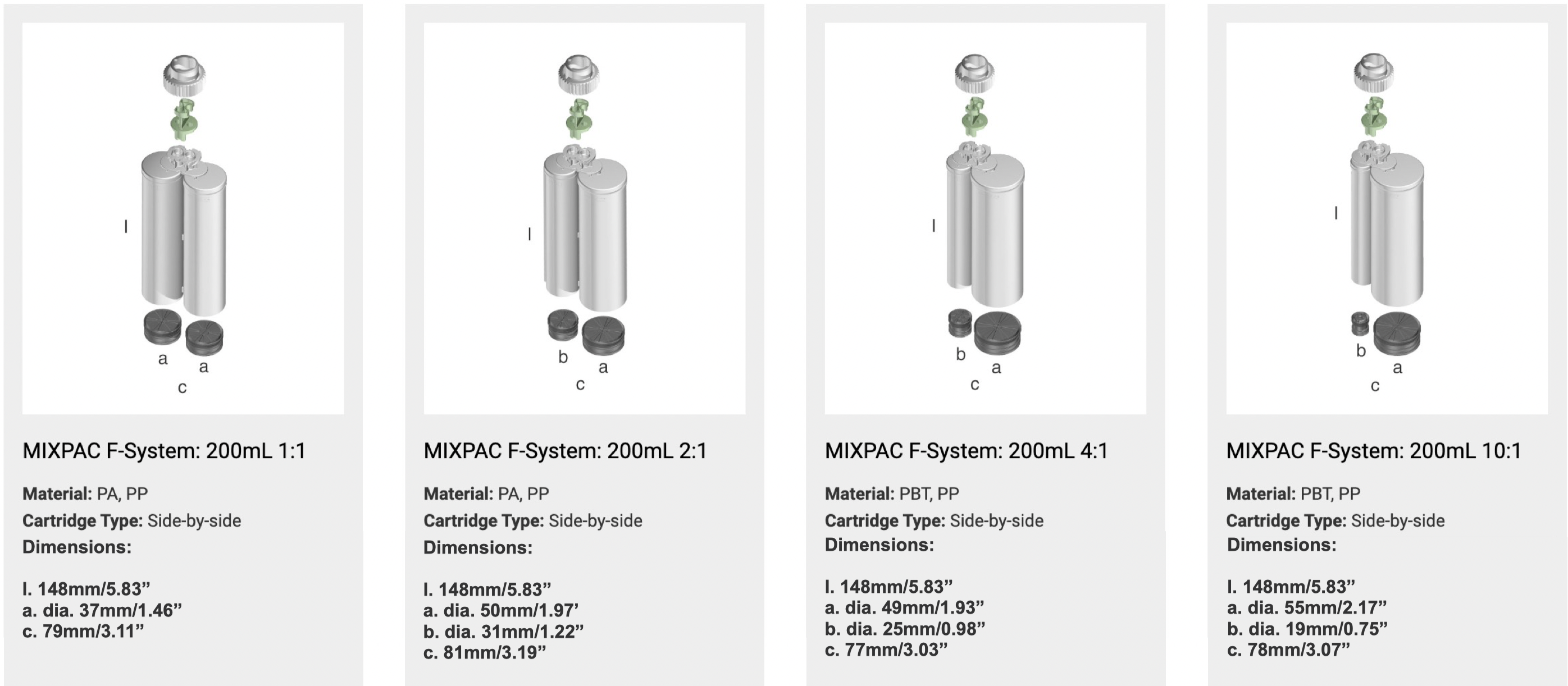

Mixpac System F 200ml
