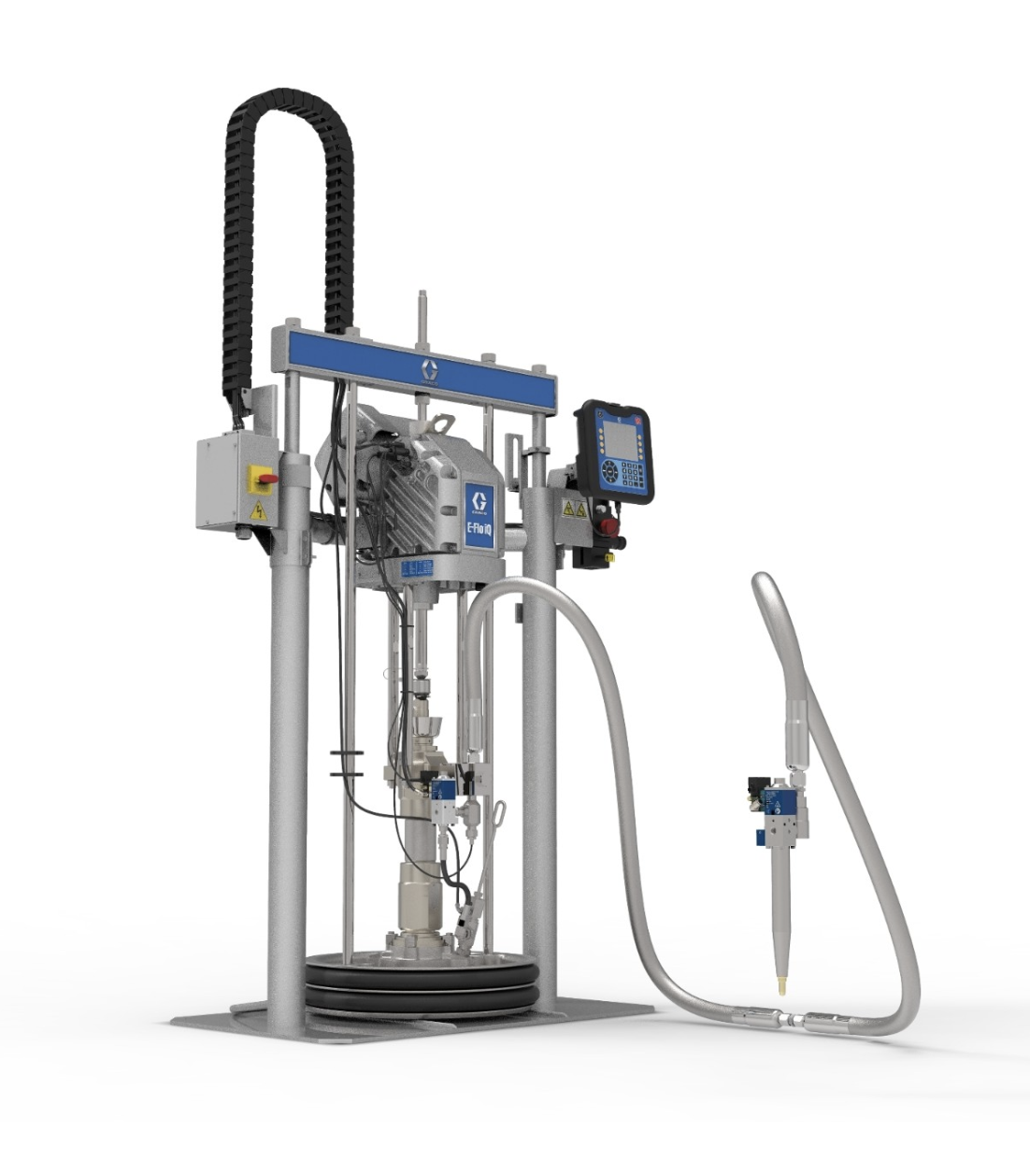

E-Flo iQ SEALANT DRUM SUPPLY SYSTEM
Electric Drive Pump with iQ valve
C$70 750.00
Standard Delivery
Shipping: 28–39 days
Ambient
In stock
E-Flo iQ SEALANT DRUM SUPPLY SYSTEM
Description
Brand: Graco
The E-Flo iQ Metering & Dispensing System our tank-to-tip metering system for single component sealants and adhesives. This dispensing solution was designed to meter directly from the drum, making it an intelligent system that delivers sustained in-plant performance, minimizes maintenance costs and reduces system complexity.
- Single Heated E-Flo iQ Supply System
- Delivers consistent control and accurate performance
- Quiet electric servo-driven motor for lower sound levels
- Provides continuous dispensing without the need to reload
- Available with either a Check-Mate Severe Duty or MaxLife lower for material compatibility
- High-Quality Heated Hoses
- Equipped with Graco hoses for proven performance
- Graco heated hoses are insulated for an accurate and uniform material temperature.
- Valves Suited for Your Dispense
- Available in a wide range of tip seal, snuff back and ball/seat models
- Compact and lightweight design allows for lower payload
- Available with different tip sizes for your application
- Offered in several nozzles lengths for vision system compatibility
- Easy and Simple Integration
- The communication gateway module (CGM) has integrated mapping of all of the programming data.
- Available protocols include EtherNet I/P, PROFINET, DeviceNet, or PROFIBUS
Technical Specifications
| Air Inlet Size (in) |
3/4 |
|---|---|
| Ambient/Warm Melt/Hot Melt |
Warm Melt |
| Applicator Type |
Tip-Seal, Ball/Seat, Snuff Back |
| Configuration |
Single |
| Container Size |
Drum |
| Fluid Outlet Size (in) |
1.0 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Gateway |
EtherNet/IP User Interface, PROFINET User Interface, PROFIBUS User Interface, DeviceNet User Interface |
| Input Cycle Rate (Hz) |
50/60 |
| Material Container Volume (gal) |
55 |
| Maximum Air Inlet Pressure (MPa) |
1 |
| Maximum Air Inlet Pressure (psi) |
125 |
| Maximum Ambient Temperature (°C) |
49 |
| Maximum Ambient Temperature (°F) |
120 |
| Maximum Fluid Temperature (°F) |
158 |
| Maximum Fluid Viscosity (cP) |
3000000 |
| Maximum Fluid Working Pressure (MPa) |
28 |
| Maximum Fluid Working Pressure (psi) |
4000 |
| Maximum Hose Length (ft) |
50 |
| Maximum Working Pressure (MPa) |
28 |
| Maximum Working Pressure (psi) |
4000 |
| Minimum Ambient Temperature (°C) |
0 |
| Minimum Ambient Temperature (°F) |
32 |
| Minimum Fluid Viscosity (cP) |
100000 |
| Minimum Voltage (V ac) |
200 |
| Phase |
1, 3 |
| Power Rating (HP) |
2.5 hp |
| Power Type |
Electric, Pneumatic |
| Ram Post Diameter (in) |
3 |
| Sound Pressure Level (dB(A)) |
< 70 |
| Type |
Metering System |
| Wetted Material |
319 Cast Aluminum, EPDM, Zinc-Plated Carbon Steel, 316 Stainless Steel, 17-4 Stainless Steel |
