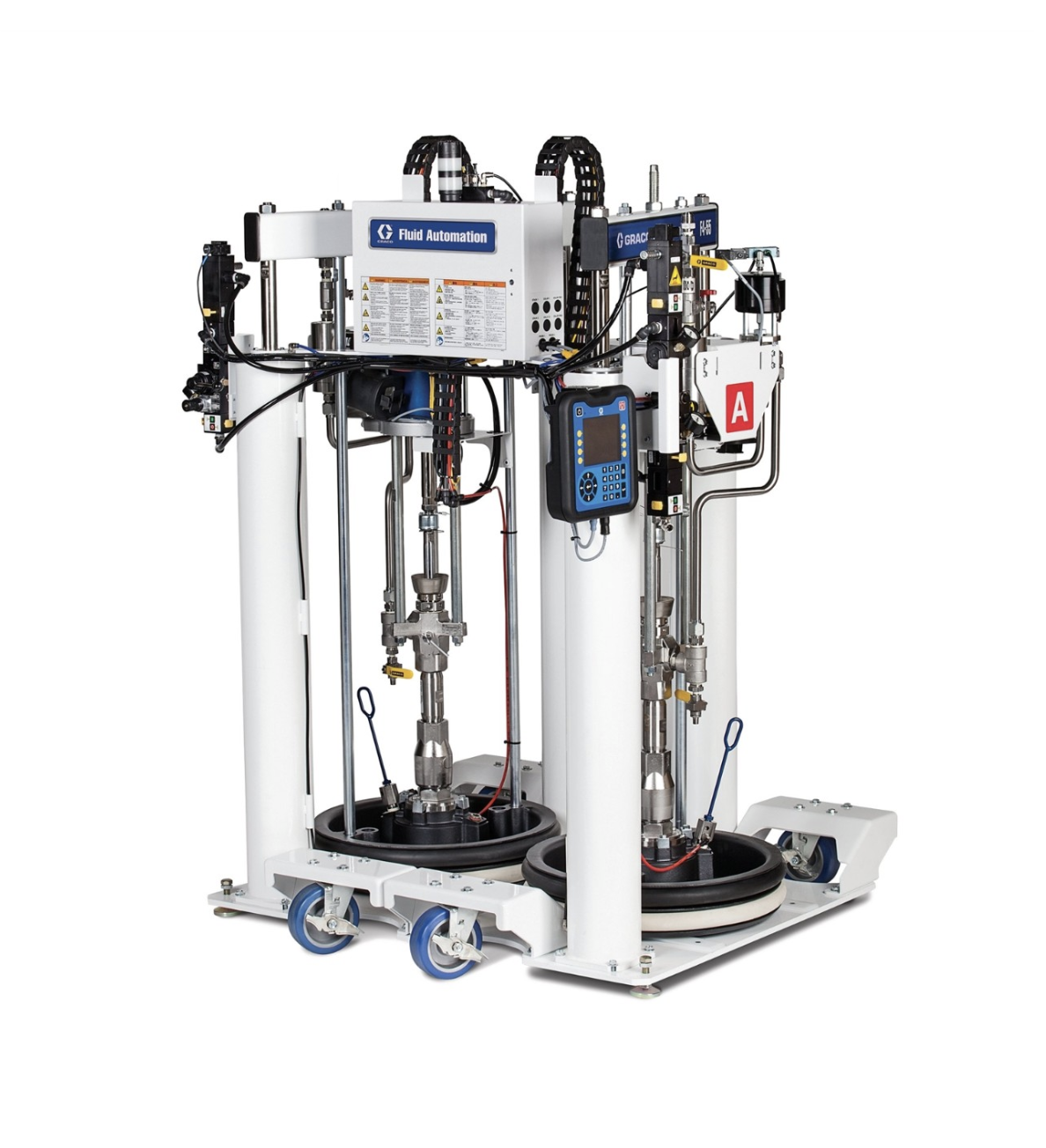

F4-LSR-200L

GRACO F4-55 LSR SYSTEM 24X167, 200L (55GAL) W/CASTERS. FLOW RANGE 10G TO *2270G (5 LBS). ADDITIVE/COLOR STREAM ADJUSTMENT 0.5 TO 6%. SYSTEM INCLUDES

• ADM (ADVANCED DISPLAY MODULE) CONTROL SYSTEM C/W.
  • INTUITIVE CALIBRATION AND SYSTEM SET UP
  • REAL TIME INDEPENDENT PRESSURE AND SPEED MONITORING,
  • USB DRIVE FOR DATA REPORTING
  • QUICK COLOUR SET UP AND CALIBRATION
  • QUICK ACCESS FLOW RATE ADJUSTMENT
  • IMMEDIATE EVENT/ERROR CODE ACCESS
  • MATERIAL USAGE AND PUMP CYCLE/MAINTENANCE DATA
• KIT,LOW LEVEL,CONT,55GAL, 25A100

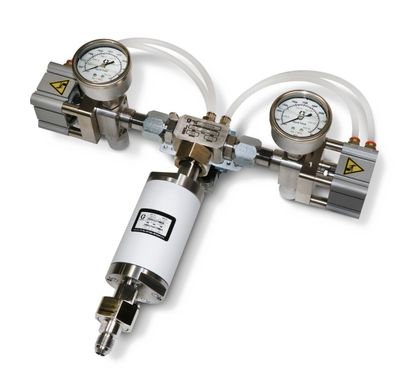

• STRAIGHT THREAD MANIFOLD WITH MATERIAL SHUTOFF VALVES, MULTI-PASS STAINLESS 30 ELEMENT WATER COOLED 25A876 - MIXER AND 3 SOLENOID VALVE KIT FOR THIRD STREAM COLOR INJECTION, 25A993
• KIT,TANK,COLOR,3L, 25A104 C/W STAINLESS BRAIDED BLUE POLYOLEFIN COATED PTFE 3/8 X 10' (3M) HOSE WITH 3/8 JIC SWIVEL FITTINGS AND 2500PSI (17237 KPA) WORKING PRESSURE.
• STAINLESS BRAIDED WHITE POLYOLEFIN COATED PTFE 3/4 X 13' 'A COMPONENT' 24R217
• STAINLESS BRAIDED BLACK POLYOLEFIN COATED PTFE 3/4 X 13' 'B COMPONENT' 16U737
• STRAIGHT THREAD REGULATOR, REGULATOR WITH 1-500 PSI (7-3447 KPA) PRESSURE RANGE AND ISOLATED PRESSURE GAUGE ALLOWS FOR STABILIZATION OF VARYING INLET PRESSURES DURING MATERIAL OUTLET DELIVERY, 25A899
