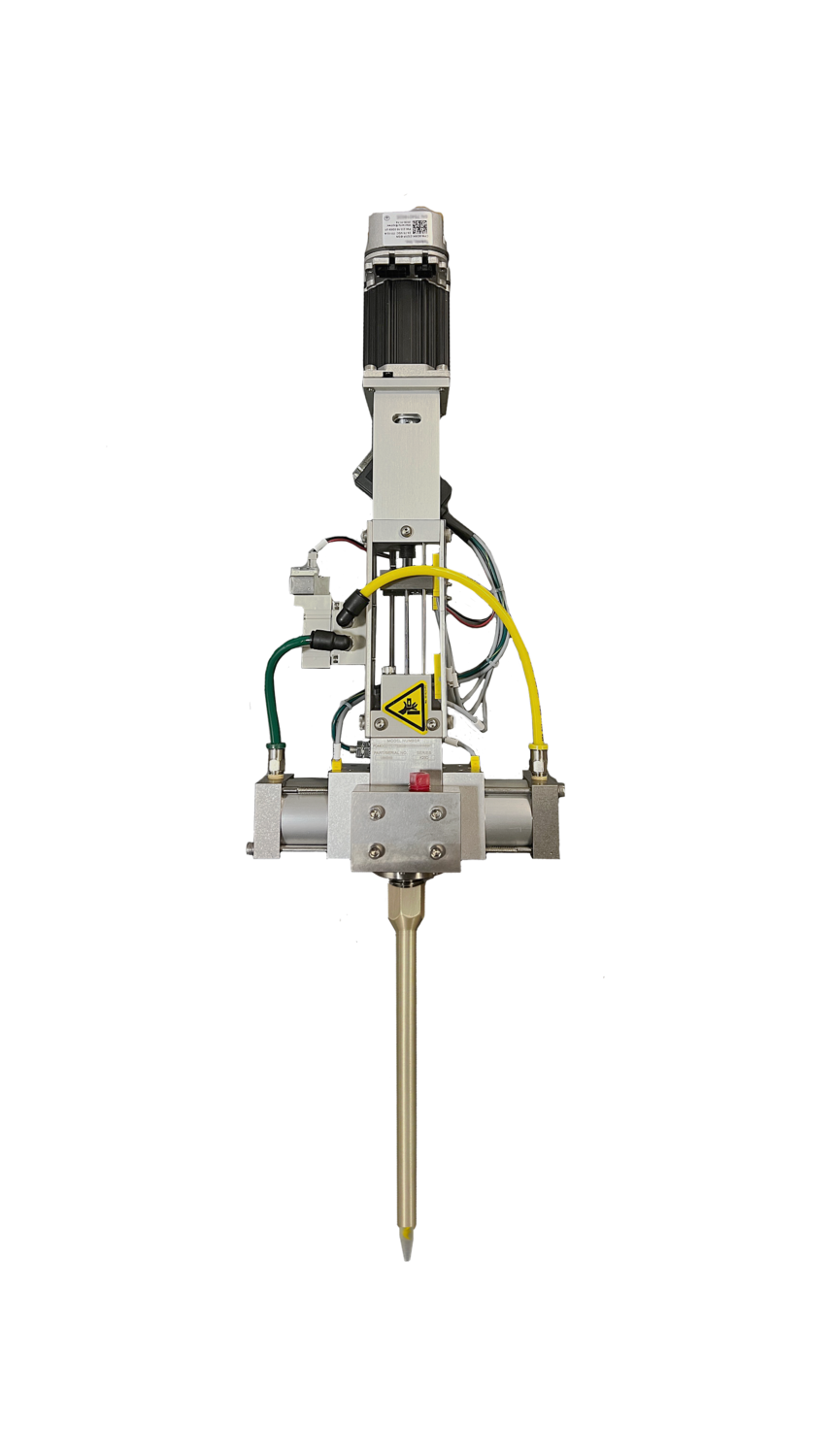

PD44
2K Micro Shot
C$48 360.00
Standard Delivery
Shipping: 27–38 days
In stock
PD44
Description
Brand: Graco
CONFIGURATION: MOTOR DRIVEN, NO MOTOR INCLUDED (NEMA 23 MOUNT), 8/2.5 MM HARDENED TOOL STEEL ROD AND TUBE METER SET, HV A/B POOL KITS, BELL MOUTH WR.
The patented Graco PD44 Valve features balanced inlet/outlet spool assemblies that do not displace material while shifting from the reload to the dispense position. This allows pressure feeding of the “A” and “B” components up to 1200 psi during reloading while isolating the materials from the mixer inlet. Upon shifting to the dispense position, an accurate volume of “A” and “B” components is injected into the disposable mixer inlet by rod displacement metering technology.
- The Micro-meter PD44 is a meter, mix, and dispense system for precise two-component micro-dispensing of sealants and adhesives. The point of dispense is ideal for small amounts of fast curing materials from water thin to paste viscosity materials ranging from 0.005cc’s to 5cc’s.
- The Micro-meter PD44 is configured to meet your specific application requirements
Technical Specifications
| Maximum Air Working Pressure (MPa) |
0.7 |
|---|---|
| Maximum Air Working Pressure (psi) |
100 |
| Maximum Fluid Outlet Pressure (MPa) |
0 |
| Maximum Fluid Outlet Pressure (psi) |
0 |
| Maximum Metal Sleeve Inlet Working Pressure (psi) |
1200 |
| Maximum Plastic Sleeve Inlet Working Pressure (MPa) |
2.8 |
| Maximum Plastic Sleeve Inlet Working Pressure (psi) |
400 |
| Series |
PD44 |
| Type |
Dispense Valve |
