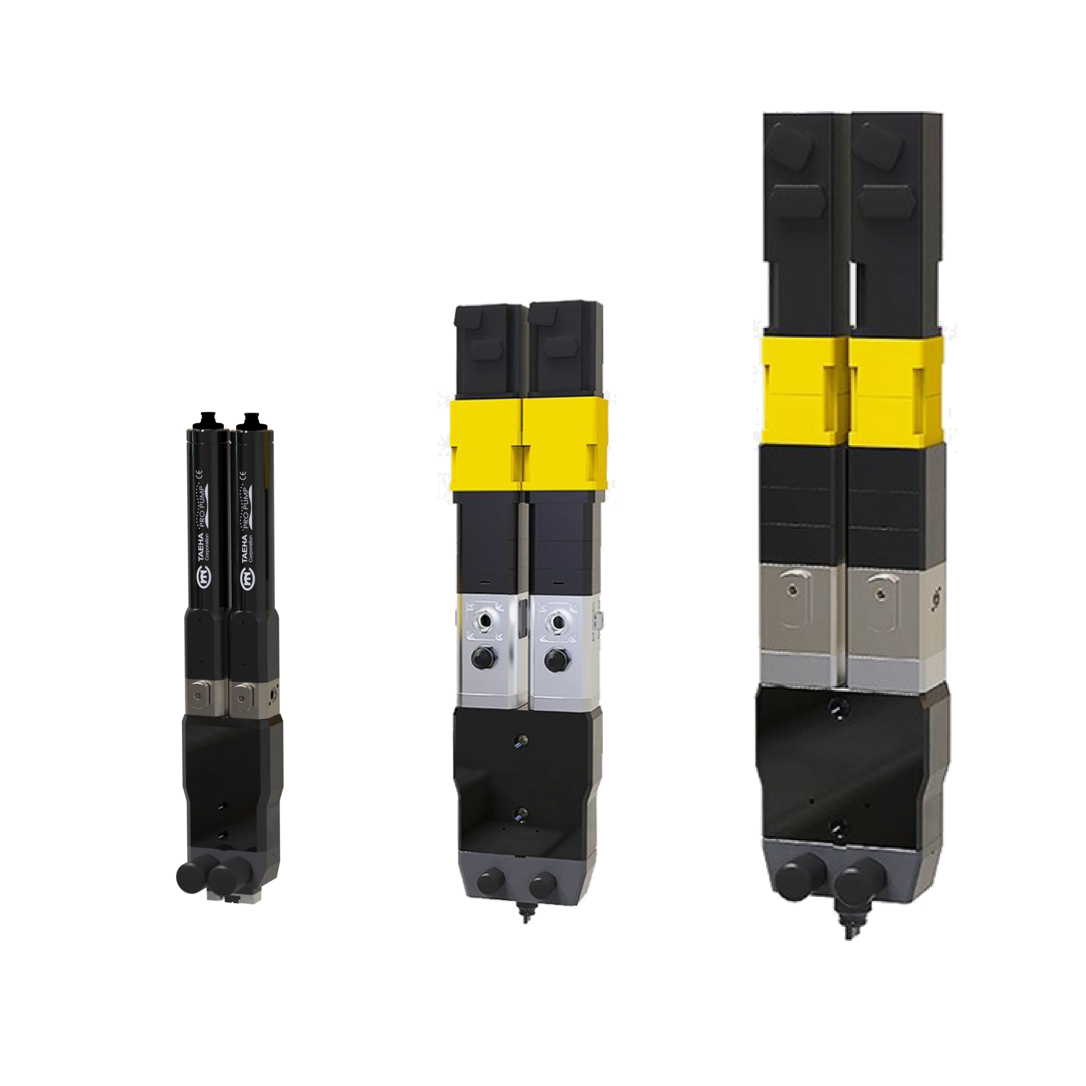

PDP Pro-Duo 2K Micro-Pump

PDP Series Brochure

Fully programmable, high accuracy, Meter Mix Dispense technology for 2K materials. Suited for applications demanding critical/variable continuous flow or highly repeatable micro shots. This compact dispensing technology, can be used as an EOAT (End Of Arm Tool) for robotic applications, or fixed position mount. From ultra-low viscosity optically clear 2K formulations, to highly filled thermal interface material pastes this versatile technology provides a complete 2K dispensing solution at an affordable price.

The PRO-DUO PUMP Series is a compact and innovative two-component dispenser designed for the precise dispensing of challenging materials. This volumetric pump allows users to directly control the mix ratio of the two components. Featuring a unique eccentric screw structure, it ensures precise dispensing by continuously rotating and transferring exact volumes of material from cavity to cavity. The pump is highly efficient, repeatable, and easily programmable, offering superior precision and versatility compared to other volumetric pumps.

The dosing volume can be quickly and easily adjusted by controlling the rotation and speed of the rotor. The system is versatile, capable of handling various situations, including differences in viscosity or mix ratios between the two components. Maintenance is made more economical and simpler by replacing the disposable mixer rather than cleaning the pump itself.
