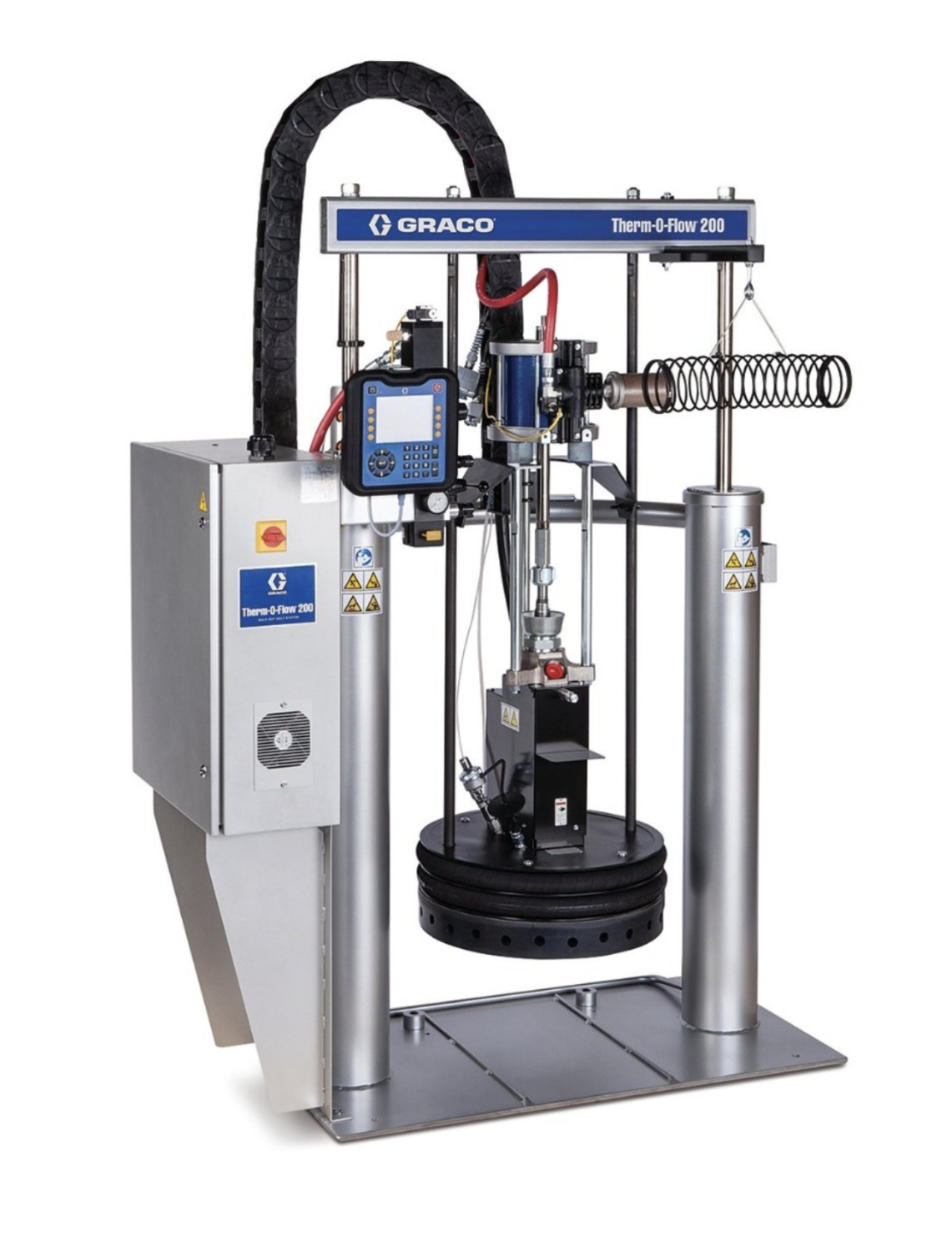

Name: THERMOFLOW 200
Brand: Graco
SKU: 70700492
Price: 81900.0 CAD
Availability: InStock

THERMOFLOW 200

Description

Brand: Graco

CONFIGURED: 36:1 PUMP, HD PACKINGS, FINNED PLATEN, EPDM SEALS, PNEUMATIC RAM, ADM CONTROLS, 6 ZONE COUNT (PUMP & PLATEN + 4 ZONES), 230VAC.

With throughput capability 200% better than the leading competitor, Therm-O-Flow® bulk hot melt systems from Graco outperform the competition time after time and provide the best performing industrial bulk melt systems on the market. Therm-O-Flow’s advanced temperature control capability virtually eliminates overheated material, resulting in better adhesive quality and reduced rework due to degraded material.

The ultimate hot melt bulk system
Highest throughput in the industry
Provides accurate temperature control of 4, 8 or 12 customer defined heat zones
Main unit easily integrates with a second Therm-O-Flow 200 or Therm-O-Flow 20 for tandem operation (up to 24 customer defined heat zones
Combine multiple Therm-O-Flow 200 units in parallel for even higher flow rates

Technical Specifications

Air Inlet Size (in)	1/2
Air Inlet Thread Gender	Female
Air Inlet Thread Type	NPSM
Ambient/Warm Melt/Hot Melt	Hot Melt
Effective Area (in²)	1.24
Fluid Outlet Size (in)	1
Fluid Outlet Thread Gender	Female
Fluid Outlet Thread Type	NPT
Frequency (Hz)	50/60
Maximum Air Inlet Pressure (psi)	100
Maximum Compressed Air (SCFM)	25-50
Maximum Fluid Working Pressure (MPa)	20.68
Maximum Fluid Working Pressure (psi)	3000
Maximum Input Pressure (psi)	125
Maximum Operating Temperature (°F)	400
Model	Therm-O-Flow
Peak Consumption (kVa)	25, 28, 25
Phase	3
Power Input (V)	220/240, 380/400, 470/490, 575
Pump Cycles Per 1 gal	21
Series	200
Type	Dispensing System
Volume Per Cycle (in³)	11.7
Weight (lb)	1200
Wetted Material	Carbon Steel, Brass, Chrome, Zinc Plating, Nickel Plating, 304 Stainless Steel, 316 Stainless Steel, 440 Stainless Steel, 14-4 PH Stainless Steel, Alloy Steel, Ductile Iron, PTFE
