TS1254
Bulk CA's and Aenarobics
C$2 192.00
Standard Delivery
Shipping: 7–9 days
In stock
TS1254
Description
Brand: Techcon

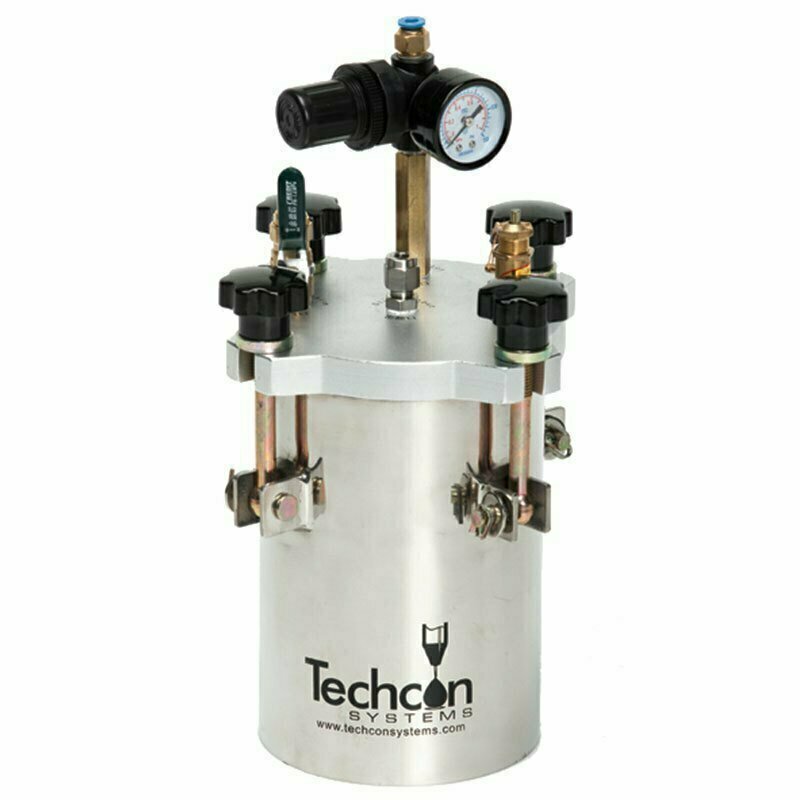

PRESSURE POT ASSEMBLY, 2L, 70PSI
TS1254 pressure tank is designed to accommodate low to medium viscosity fluids, including solvents, adhesives, as well as Cyanoacrylate (CA). Equip with pressure relief (safety) valve and couple with stainless steel chamber, the TS1254 provides safe and secure dispensing for all applications. Airtight lid seal ensures there are no leak points for air or material.
The material feed line is located in the center of the lid to allow direct and continuous feed path from the material container to the valve inlet. The TS1254 is supplied with ¼” (6mm) Teflon tubing to provide resistant to all types of dispensing fluids. An optional 4mm tubing kit (TS1252-4MM) is available.
The material feed line is located in the center of the lid to allow direct and continuous feed path from the material container to the valve inlet. The TS1254 is supplied with ¼” (6mm) Teflon tubing to provide resistant to all types of dispensing fluids. An optional 4mm tubing kit (TS1252-4MM) is available.
Product Comprises of:
- Fluid tubing 6mm (natural)
- 6mm Air tubing
- Fitted with 6mm "through" compression fitting
| Operating Pressure: | 70 psi (4.8bar) max |
| Standard Tube Size: | 6mm included with the unit |
| Internal size (Imperial): | 6.5” x 4.75” |
| Internal size (Metric): | 165.1mm x 121mm |
