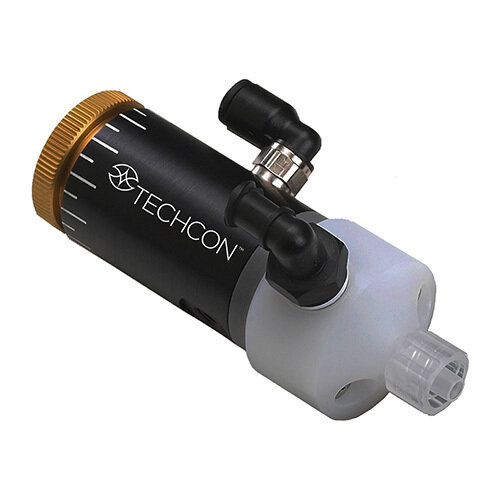

TS5622VU

Diaphragm Valves are designed to dispense low to medium viscosity materials with precision accuracy over a wide range of shot and bead sized down to a fraction of a micro liter. An internal spring return makes the valves fully adaptable for use with Techcon Systems time/pressure controllers. A short opening stroke provides extremely fast, positive shut-off. An external stroke control adjustment makes it easy for the operator to fine tune shot sizes. The compact design allows for mounting flexibility and easy integration into automated applications. The valves are low maintenance, easy-to-use, easy-to-maintain with user replaceable spare parts. Recommended Controller: TS550R, TS350, TS250 in conjunction with TS1258

Fluid Inlet Port:	1/8'' NPT female
Fluid Outlet Port:	1/4-28 UNF
Activation Pressure:	70 psi (4.8bar) Min
Max Fluid Pressure:	70 psi (4.8bar)
Mounting Port:	10-32 UNF
Viscosity Range:	1-50 000cps
Wetted Parts:	UHMWPE
Operating Frequency:	400+ cycles/min
