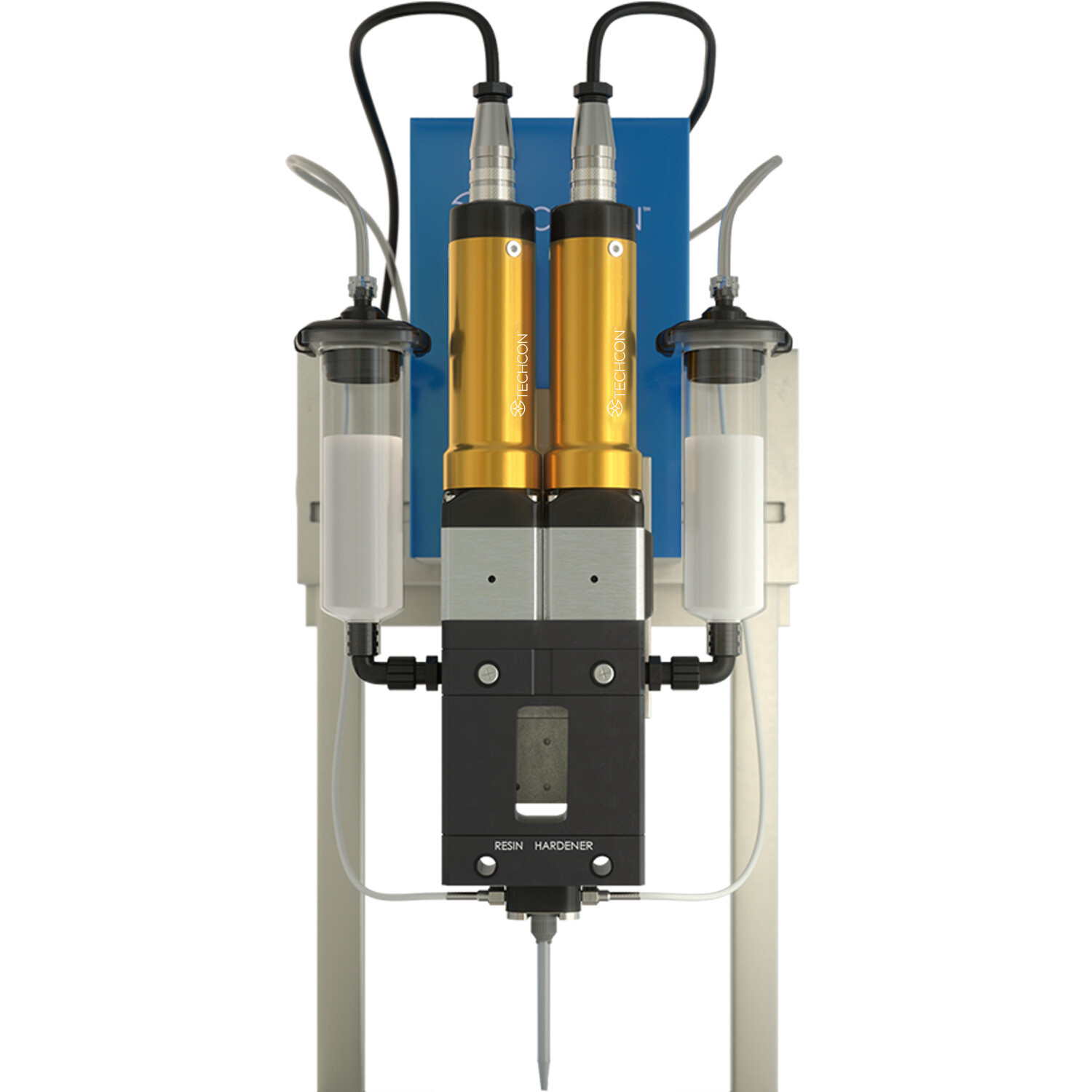

TS8200D-200-PS-SYS
Programmable Micro Flow
C$47 244.00
Standard Delivery
Shipping: 16–25 days
TS8200D-200-PS-SYS
Description
Brand: Techcon
MICRO METER MIX SYSTEM, 200 X 200, PRESSURE SENSOR
The TS8200D Series Micro-Meter Mix is a precision volumetric mixing and dispensing system for 2-component material. It consists of 2 progressive cavity pumps integrated in a fluid manifold connected to the static mixing nozzle. Part A and part B of the material is precisely fed by the progressive cavity pump with the correct ratio into the static mixing nozzle to provide accurate mixing and dispensing output.
Every component of the pump was designed to the highest tolerances and manufactured to the strictest degree of precision, ensuring world class accuracy and repeatability.
TS580D-MM smart controller features an intuitive touchscreen user-interface for easy setup and operation. Pump calibration is quick and easy. Dispensing parameters can be quickly dialed in on the touchscreen. TS580D-MM smart controller features an intuitive touchscreen user-interface for easy setup and operation. Pump calibration is quick and easy. Dispensing parameters can be quickly dialed in on the touchscreen.Technical Specifications
| Part Number | TS8200D-100 | TS8200D-200 | TS8200D-300 | TS8200D-2100 | TS8200D-3100 | TS8200D-3200 |
| Description | Pump 100 X 100 | Pump 200 X 200 | Pump 300 X 300 | Pump 200 X 100 | Pump 300 X 100 | Pump 300 X 200 |
| Size | 314 mm L x 69 mm W x 34 mm D (12.4” L x 2.7” W x 1.3” D) | |||||
| Weight | 1.24 kg/2.74 lb. | |||||
| Motor | 24V DC, incremental encoder | |||||
| Flow Rate | 0.24–2.42 ml/min | 1.29–13.80 ml/min | 1.56–16.24 ml/min | 0.77–8.11 ml/min | 0.90–9.33 ml/min | 1.43–15.02 ml/min |
| Dispensing Volume Per Revolution | .012 ml | .047 ml | .08 ml | .012 ml for -100 .047 ml for -200 | .012 ml for -100 .08 ml for -300 | .047 ml for -200 .08 ml for -300 |
| Repeatability | +/- 1% per pump | |||||
| Dispense Accuracy | > 99% | |||||
| Fluid Inlet Pressure Maximum | Up to 2 bar (30 psi) for viscosity of 1,000 cps or less, up to 5.5 bar (80 psi) for viscosity greater than 1,000 cps | |||||
| Fluid Inlet Type | 1/8” NPT | |||||
| Fluid Outlet | Static Mixer Adapter | |||||
| Mixing Nozzle | K-type, Standard Bayonet | |||||
| Mounting | M4 x 35MM, SHC, S.S | |||||
| Operating Temperature | 10 – 40 °C (50 – 104 °F) | |||||
| Fluid Viscosities | 1 - 300K Cps (m.Pa.s) | |||||
| Approval | CE, TUV-GS | |||||
| Warranty | 1 year, limited | |||||
