TS8200D-200

MICRO METER MIX PUMP, 200 X 200The TS8200D Series Micro-Meter Mix is a precision volumetric mixing and dispensing system for 2-component material. It consists of 2 progressive cavity pumps integrated in a fluid manifold connected to the static mixing nozzle. Part A and part B of the material is precisely fed by the progressive cavity pump with the correct ratio into the static mixing nozzle to provide accurate mixing and dispensing output.

User Guides

TS8200 Data Sheet

Every component of the pump was designed to the highest tolerances and manufactured to the strictest degree of precision, ensuring world class accuracy and repeatability.

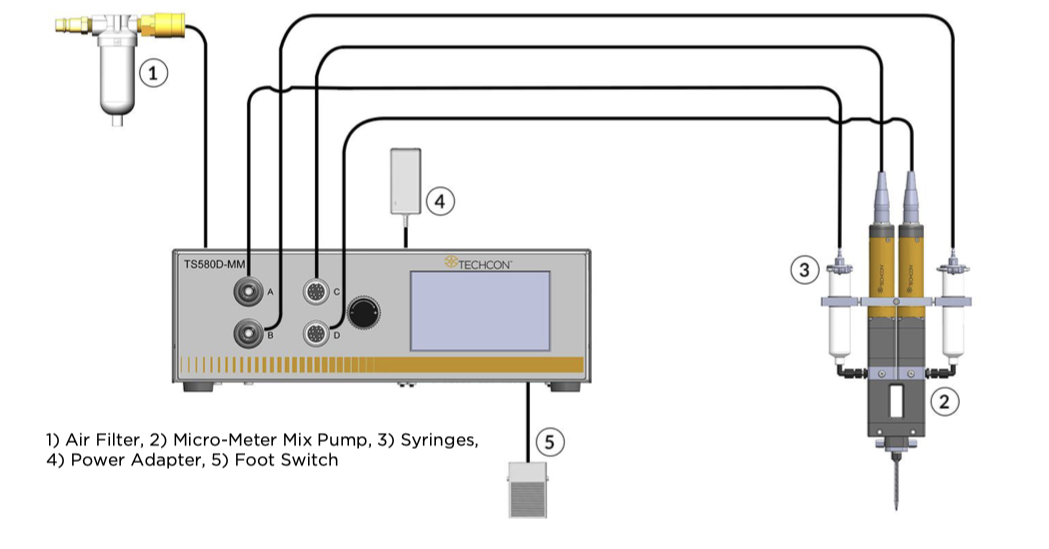

TS580D-MM smart controller features an intuitive touchscreen user-interface for easy setup and operation. Pump calibration is quick and easy. Dispensing parameters can be quickly dialed in on the touchscreen. TS580D-MM smart controller features an intuitive touchscreen user-interface for easy setup and operation. Pump calibration is quick and easy. Dispensing parameters can be quickly dialed in on the touchscreen.Typical Set Up
Technical Specifications

Part Number	TS8200D-100	TS8200D-200	TS8200D-300	TS8200D-2100	TS8200D-3100	TS8200D-3200
Description	Pump 100 X 100	Pump 200 X 200	Pump 300 X 300	Pump 200 X 100	Pump 300 X 100	Pump 300 X 200
Size	314 mm L x 69 mm W x 34 mm D (12.4” L x 2.7” W x 1.3” D)
Weight	1.24 kg/2.74 lb.
Motor	24V DC, incremental encoder
Flow Rate	0.24–2.42 ml/min	1.29–13.80 ml/min	1.56–16.24 ml/min	0.77–8.11 ml/min	0.90–9.33 ml/min	1.43–15.02 ml/min
Dispensing Volume Per Revolution	.012 ml	.047 ml	.08 ml	.012 ml for -100 .047 ml for -200	.012 ml for -100 .08 ml for -300	.047 ml for -200 .08 ml for -300
Repeatability	+/- 1% per pump
Dispense Accuracy	> 99%
Fluid Inlet Pressure Maximum	Up to 2 bar (30 psi) for viscosity of 1,000 cps or less, up to 5.5 bar (80 psi) for viscosity greater than 1,000 cps
Fluid Inlet Type	1/8” NPT
Fluid Outlet	Static Mixer Adapter
Mixing Nozzle	K-type, Standard Bayonet
Mounting	M4 x 35MM, SHC, S.S
Operating Temperature	10 – 40 °C (50 – 104 °F)
Fluid Viscosities	1 - 300K Cps (m.Pa.s)
Approval	CE, TUV-GS
Warranty	1 year, limited
