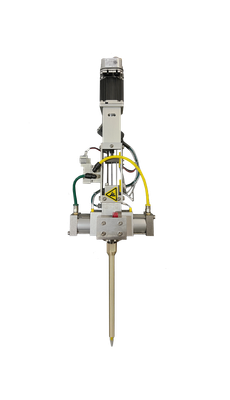

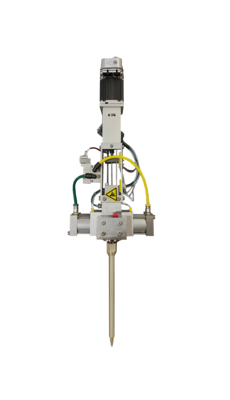

PR-X
High Pressure 2K Micro Shot
C$72 540.00
Standard Delivery
Shipping: 28–39 days
In stock
PR-X
Description
Brand: Graco
CONFIGURATION: PR-X, PUMP FEED, MD2 VALVE, DIRECT MOUNT WITH STANDARD TUBE, 1:1.
The Graco PR-X meter, mix and dispense system is suitably designed for two component adhesive applications. True first-in-first-out fluid path design helps eliminate material clogging and separation when dispensing material with high density and viscosity. For high throughput dispensing, provide raw material remotely using supply pumps to deliver from a wide range of container sizes from cartridges to drums. Directly mounting Graco MD2 dispense valve is ideal for the most highly filled and highest viscosity materials.
- Advanced precision flow control solution
- Material First in First out
- Ceramic metering tube for extra high wear applications
- Seamless integration with robots, automated work cells, and data tracking systems
- Various gateway options (I/O, Profinet)
- Light and compact
Technical Specifications
| Air Inlet Size (in) |
1/4 |
|---|---|
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Ambient/Warm Melt/Hot Melt |
Ambient |
| Amperage (A) |
10 |
| Application |
Adhesive, Sealant |
| Applicator Type |
MD2 Dispense Valve |
| Coating Type |
High Wear |
| Component Type |
Two Component |
| Controls |
Yes |
| Drive Method |
Servo motor |
| Fixed/Variable Ratio |
Fixed |
| Fluid Inlet Size (in) |
0.25 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
7/8-9 |
| Maximum Air Inlet Pressure (psi) |
100 |
| Maximum Fluid Working Pressure (MPa) |
8.4 |
| Maximum Fluid Working Pressure (psi) |
1200 |
| Maximum Input Pressure (psi) |
1200 |
| Maximum Working Pressure (psi) |
1200 |
| Mix Ratio |
1:1 to 2.4:1 |
| Model |
PR-X |
| Overall Depth (in) |
9 |
| Overall Height (in) |
6.1 |
| Overall Width (in) |
29.2 |
| Supply Type |
Pump |
| Type |
Dispensing System |
| Valve Mount Type |
Direct Mount |
| Voltage (V ac) |
240 |
| Weight (lb) |
35 |
| Wetted Material |
303/304 Stainless Steel, Hard Chrome, Ceramic, UHMWPE, NBR, Carbon, Steel, PTFE |
